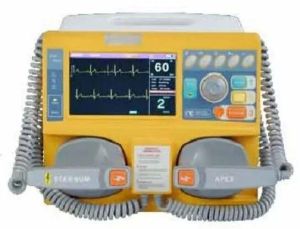

Maestros Vital Wave Biphasic Defibrillator

Key feature of Maestros Vital Wave Biphasic Defibrillator:

Maestros Vital Wave Biphasic Defibrillator is a medical device that is used to restore normal heart rhythm in patients experiencing life-threatening cardiac arrhythmias. Some of the key features of Maestros Vital Wave Biphasic Defibrillator include:

• Biphasic waveform: Maestros Vital Wave Biphasic Defibrillator uses biphasic waveform technology to deliver electrical shocks to the heart, which is known to be more effective in restoring normal heart rhythm than traditional monophasic waveforms.


• Multiple energy settings: The device comes with multiple energy settings that can be adjusted to suit the patient’s needs and to achieve the desired results.


• User-friendly interface: The device has a user-friendly interface with a large color touchscreen display that provides clear and easy-to-understand instructions for the operator.


• Compact and lightweight: Maestros Vital Wave Biphasic Defibrillator is designed to be compact and lightweight, making it easy to transport and use in a variety of settings, including hospitals, clinics, and ambulances.


• Advanced battery technology: The device is equipped with advanced battery technology that allows for extended use without the need for frequent recharging or replacement.

Measuring Parameters :

• Channel : 2 Channel


• Electrode :  3 / 5 Leads


• ECG Acquisition :  Patient Cable and Paddles

Other Details:

• Display : 2 Waveforms with HR and Joules selected


• Lead : Lead I, II, III, aVR, aVL, aVF, V


• Gain Selection : 5 /10 /15 /20 mm/mv


• Sweep Speed : 12.5, 25 or 50 mm/sec


• Heart rate range : 30-240 bpm


• Heart Rate Accuracy : + 2 bpm


• Frequency Response : 0.05 to 40 Hz


• CMRR : >100 dB

Input Impedance : >100 M Ohms
